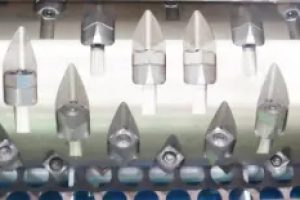

1. Customized Spindle Rotor
- The W type for soft material and the blade seat type for block material.

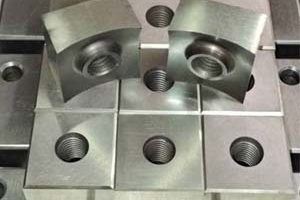

2.Rotor Change Angle
- Rotor can be reuse by change the angle according to the wearing condition, which can saving cost by a lot.

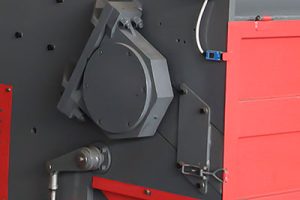

3.External bearing seat.
- Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
Model/Parameter | GSH600 | GSH800 | GSH1000 | GSH1200 |
Main Shaft Length(mm) | 600 | 800 | 1000 | 1200 |
Main Shaft Tactical Diameter(mm) | 280 | 400 | 450 | 450 |
Main Shaft Speed(rpm) | 78 | 78 | 78 | 78 |
Ram Travel(mm) | 600 | 800 | 1000 | 1200 |
Rotor Blades(pcs) | 39 | 51/57 | 63/92 | 81/116 |
Fixed Blades(pcs) | 2 | 2 | 3 | 4 |
Motor Power(kw) | 22 | 37 | 55/75 | 75/90 |
Hydraulic Power(kw) | 2 | 3 | 4 | 4 |
Screen Mesh Diameter(mm) | 30-80 | 30-80 | 30-120 | 30-120 |
Cutting Chamber Dimension(mm) | 600*600 | 800*800 | 1000*1000 | 1200*1250 |
Overall Dimension(L*W*H)(mm) | 1750*1400*1780 | 2430*1720*2480 | 2880*2180*2570 | 3350*2300*2660 |
Weight(kg) | 2800 | 5000 | 7000 | 8000 |
