PRODUCT DESCRIPTION
Application:
- Large household appliance shells
- Automobile bumpers
- Injection product
1. Customized Main Shaft
- The main shaft adopts high-strength welded steel structure with a unique V-shaped design.
- All main shafts have passed strict dynamic and static balance tests to ensure the reliability of machine operation.

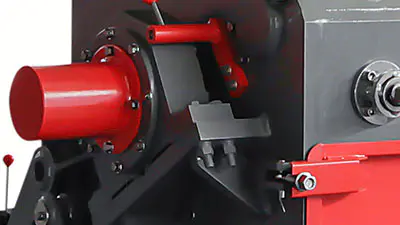

2. External bearing seat.
- Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
3.Hydraulic opening system.
- The upper and lower cabinet and the screen bracket are hydraulically controlled, which is convenient for machine maintenance and the replacement of blades and screens.

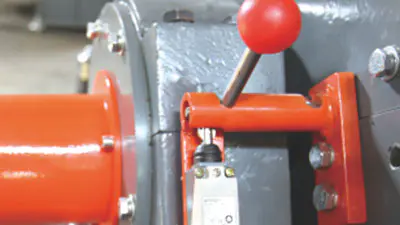

4.Protection device while replacing blade.
- The mainshaft is fixed during the blade replacement process, which makes the blade replacement easier.
- At the same time, the circuit is disconnected to prevent the misoperation of the machine and protect the safety of operators.
Shredder Features:

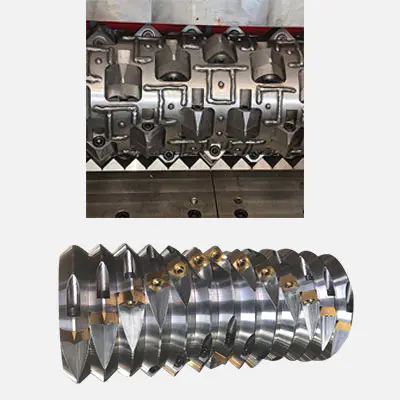

1.Customized Spindle Rotor

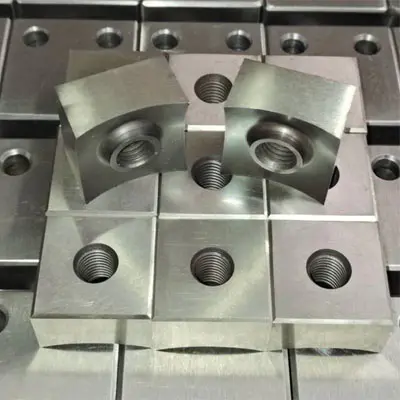

- The W type for soft material and the blade seat type for block material.
2.Rotor Change Angle
- Rotor can be reuse by change the angle according to the wearing condition, which can saving cost by a lot.

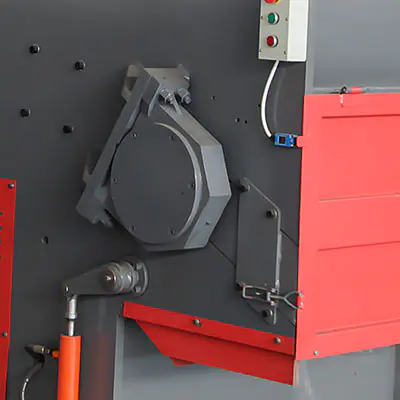

3.External bearing seat.
- Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
4.Hydraulic Opening System
- The maintenance time can be saved by adopt of hydraulic system to provide quick screen change.
| Model/Parameter | CDS600/280 | CDS800/400 | CDS1000/450 | CDS1200/450 | CDS1600/645 |
| Main Shaft Length (mm) | 600 | 800 | 1000 | 1200 | 1600 |
| Main Shaft Diameter (mm) | 280 | 400 | 450 | 450 | 645 |
| Main Shaft Speed (rpm) | 78 | 78 | 78 | 78 | 78 |
| Pusher Travel Distance (mm) | 600 | 800 | 1000 | 1200 | 1600 |
| Rotating Blades (pcs) | 39 | 51 | 63 | 81 | 140 |
| Fixed Blades (pcs) | 2 | 2 | 3 | 4 | 5 |
| Motor Power (kW) | 22 | 37 | 55/75 | 75/90 | 75*2 |
| Hydraulic Power (kW) | 2 | 3 | 4 | 4 | 5 |
| Mesh Diameter (mm) | 30-80 | 30-80 | 30-120 | 30-120 | 30-120 |
| Shredding Chamber Dimension (mm) | 600×600 | 800×800 | 1000×1000 | 1200×1250 | 1600×1400 |
| Overall Dimension (L×W×H)(mm) | 1750×1400×1780 | 2430×1720×2480 | 2880×2180×2570 | 3350×2300×2660 | 3800×3300×3250 |
| Weight (kg) | 2800 | 5000 | 7000 | 8000 | 11500 |
